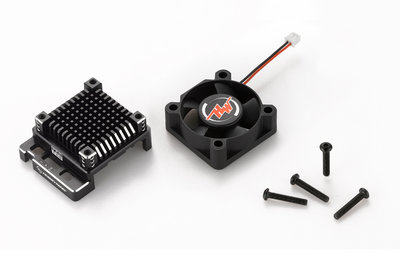

Hobbywing 3010 Fan with Adapter for XR10 Pro G2-Black - 30850303

Schnellansicht

(0)
Nicht auf Lager
Hobbywing 3010 Fan with Adapter for XR10 Pro G2-Black - 30850303

Hobbywing 3010 Fan with Adapter for XR10 Pro G2-Black - 30850303

(0)
€ 34,95

Hobbywing 3010 Fan with Adapter for XR10 Pro G2-Black - 30850303

Schnellansicht

Bestellen

€ 49,95
(0)
Auf Lager

(0)
€ 49,95

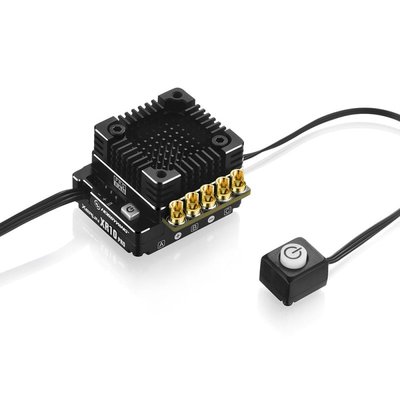

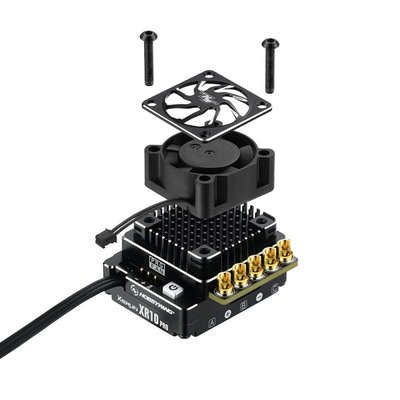

Hobbywing XeRun XR Pro Elite Electric Blue G2 HW - 30112612
Neu!

Schnellansicht

Bestellen

(0)
Auf Lager
Hobbywing XeRun XR Pro Elite Electric Blue G2 HW - 30112612

Hobbywing XeRun XR Pro Elite Electric Blue G2 HW - 30112612

(0)
€ 224,95

What comes in the box?
All editions come with

  • XR10 PRO ESC G2 w/ a cooling fan
  • 13AWG wires for flexible layout / lightweight
  • (2) Input wires & (3) Output wires
  • (2) x cooling fan (comes with one back-up fan)
  • Dual capacitors
  • Decals
  • Bonus parts: heat tubes, double tape, nylon cable zap traps
Edition package schedule
Edition package
(P/N | SKU)
Electric
Blue

(30112612)
Color
Wires 13 AWG (racing)

Secondary
Extended power
switch

Option
(Not included)


Features:

  • Upgraded 32-bit M4 microprocessors with more powerful processing capability guarantee stable control and rapid response. (Industry's highest 32-bit microprocessor, increased processing speed by X4)
  • Peak current up to 1200A. (this is not a typo)
  • Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
  • Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving; braking forces (of the motors).
  • Expanded range of the max. brake force brings in the active brake ranges from 101% to 150%.
  • Softening function (HOBBYWING-initiated) for milder or wilder driving control and better driving efficiency.
  • 10 select-to-use profiles applicable to all 1/10th RC car racing.
  • Internal electronic key switch for long service life, high reliability; and the external switch port for connecting an external switch (included in the product box) is applicable to different situations.
  • Separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
  • With the New WIFI express module (purchase separately), users are able to program parameters, upgrade firmware and check relevant data during the event using either the iPhone or Android devices.
  • Switchable motor direction (CCW/CW) for various chassis.
  • Multiple protections come in standard
    • low-voltage cutoff protection
    • ESC and motor thermal protection
    • Fail-safe (throttle signal loss protection)
    • Reverse polarity protection*
  • Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
  • Firmware upgrade via Hobbywing multifunction LCD program box or WiFi Express (item sold separately).

* The external standard cap pack will still be damaged if battery reversal occurs. For full protection, recommend using HOBBYWING SMT-MLCC capacitor banks (purchase separately)

Specifications

ID XR10 PRO G2 ESC - ELITE edition
p/n

30112610 (Passion-Red) | 30112611 (Midnight Silver)

30112612 (Electric Blue)

Application Brushless motor system for 1/10th, 1/12th Touring Cars & Buggies Racing, Splashproof
Cont./Peak Current 160A/1200A
Input Voltage 2S LiPo/5-6 Cell NiMH
BEC Output 5V-7.4V
Wires & Connectors Elite edition: 13AWG 200mm
Programming device LCD program box
WiFi Express Module (available through Firmware update)
Firmware LCD Program box via USB software (PC only)
OTA available by WiFi Express (iOS / Android) - coming soon
Size & Weight 37.5X30.9X32.5mm
Weight 95g
Motor spec recommendation

1/10th Touring Car≥4.5T
1/10th Buggy ≥ 5.5T 3650 Motor

Schnellansicht

Bestellen

€ 54,95
(0)
Extra Lieferzeit

(0)
€ 54,95

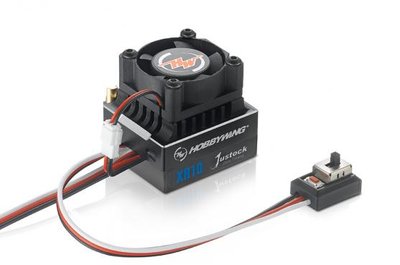

Hobbywing XeRun XR10 Justock ESC (ETS) + XeRun Justock 3650SD G2.1 17.5T Sensored - HW-Combo-17.5T

Hobbywing XeRun XR10 Justock ESC (ETS) + XeRun Justock 3650SD G2.1 17.5T Sensored - HW-Combo-17.5T

(0)
€ 114,95

Hobbywing XeRun XR10 Justock ESC (ETS) + XeRun Justock 3650SD G2.1 17.5T Sensored - HW-Combo-17.5T

This Hobbywing combo is the perfect way to race stock with the same chances for everybody. The quality is insane and the speedo and motor are working together perfectly. This combo will be the power source of choice for the new FWD class at the ETS series and is also perfect for all other applications where people are looking for a limited combo with great features and maximum performance!

For easy identification there will be laser engraved ETS and TS logos on the components. The speedo comes with a pre-installed software which will be in use at the ETS (RPM limiter for even horsepower).


Features:

XeRun XR10 Justock Speedo

Current: 60A/380A (Maximum)
BEC: 6V / 2A
Dimensions: 33.5x28.5x30.5mm
Weight: 59.8g
Motorlimit: Maximum 8.5T at 2S and 13.5T at 3S (always use a fan)


XeRun Justock G2.1 17.5T

MotorTurns: 17.5T
Timing: Fixed

Schnellansicht

Bestellen

€ 199,00
(0)
Extra Lieferzeit

(0)
€ 199,00

Schnellansicht

Bestellen

€ 199,00
(0)
Extra Lieferzeit

(0)
€ 199,00

Schnellansicht

Bestellen

€ 199,00
(0)
Extra Lieferzeit

(0)
€ 199,00

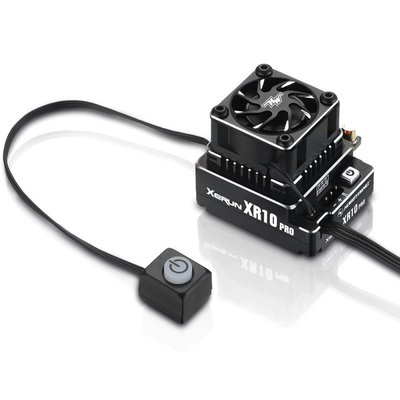

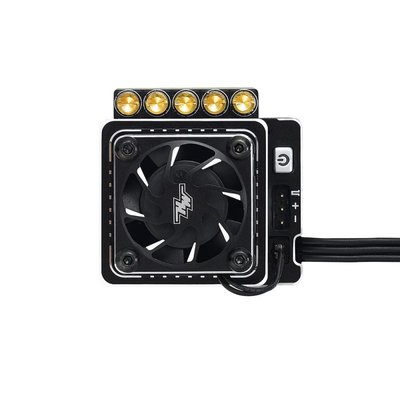

Hobbywing XeRun XR10 Pro G2 160A ESC - Black - 30112608

Schnellansicht

Bestellen

(0)
Auf Lager
Hobbywing XeRun XR10 Pro G2 160A ESC - Black - 30112608

Hobbywing XeRun XR10 Pro G2 160A ESC - Black - 30112608

(0)
€ 214,95

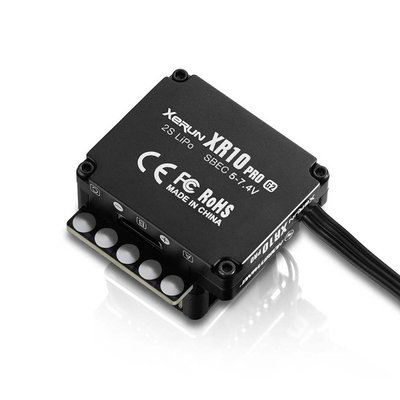

The XR10 Pro G2 ESC is designed for 1/10th and 1/12th RC car racing.

IT features a 32-bit microprocessor, built-in BEC with maximum current of 10A and voltage adjustable from 5 to 7.4v, battery-protection circuit, dual-switch control, adjustable maximum brake force (extended to 150%) and PWM & Brake frequencies and Turbo increase & decrease rates, and switchable motor direction (CCW/CW)


Upgraded M4 Microprocessor (32-bit) for
Professional Racing

High-performance 32-bit M4 microprocessor is implemented in the XR10PRO G2 for Super-fast and precise processing of complicated data operations, this allows the ESC to have a very rapid and precise response with extraordinary potential to optimize and extend its functions further. The XR10 PRO G2 is an exceptional piece of Hardware combined with accurate and powerful software makes this ESC into a “Precise weapon” for high end professional racing.

Internal Battery-Reverse Polarity Protection Circuit

With the Built-in Reverse Voltage Protection circuit, ESC's internal parts are all protected from Cross Connection of battery power.
(Note: the overall power system will be protected from damage when non-polarized filter capacitors are used; the standard electrolytic (external capacitors ) supplied for this ESC have no reverse polarity protection, so the capacitors (only) ,not the ESC will be damaged  when reverse polarity installation occurs.)

Innovative Dual-Switches / Removable External Switch

Internal electronic switch & external removable switch for easy and convenient  usage. The internal switch simplifies wiring while the external switch solves the issue “it’s hard to reach the built-in switch when the car body is mounted on or  inner chassis placement of ESC”. External switch is perfect for off-road applications. (Warning! This is Hobbywing’s registered patented)

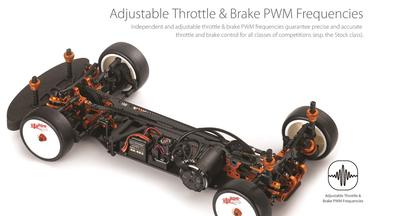

Updated Drive, and Brake PWM Frequency


More available frequency values (include "Customized PWM Frequencies") for improved tuning options of the drive and brake feel.



Drive PWM:1-32KHz
Brake PWM:0.5-16KHz


Tunable Turbo Increase & Decrease Rates

More fine tunable values have been implemented for Turbo Increase & Decrease Rates which allows the end user to fine tune the turbo for optimal performance when racing at different size tracks .


Switchable Motor Direction

Switchable motor direction: CCW & CW for various chassis.

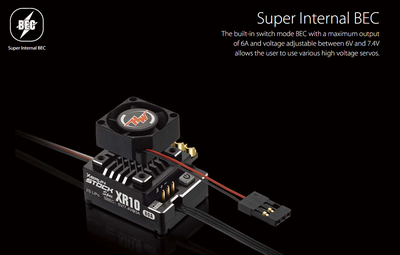

Super Internal BEC

Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step:0.1V) for usage with high voltage servos.


Softening Function (Hobbywing’s Patented Technology)

Softening function implemented in this ESC allows user to fine-tune the bottom end allowing for maximum controlled power of vehicles used in Modified class racing applications.

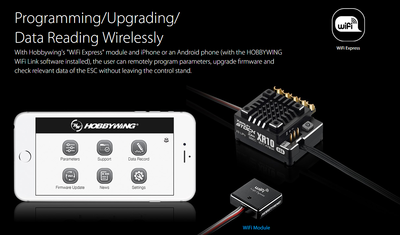

Programming/Upgrading/Data Reading Wirelessly

With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the Hobbywing WiFi Link App installed), users can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

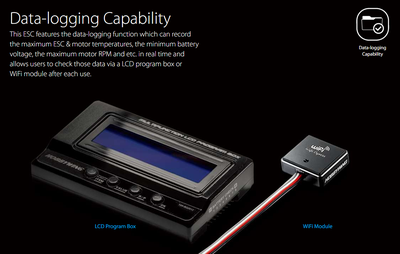

Data-logging Function

This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use. In the future, new (ESC) firmware will not only record the maximum temperatures, RPM and others but also provide complete operation (status) curve for users.

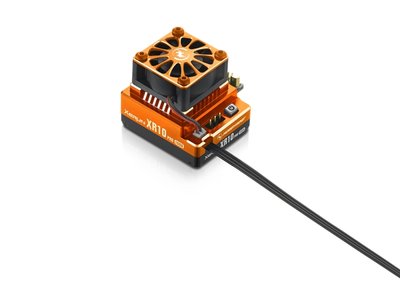

Hobbywing XeRun XR10 Pro G2 160A ESC - Orange - 30112607

Schnellansicht

(0)
Nicht auf Lager
Hobbywing XeRun XR10 Pro G2 160A ESC - Orange - 30112607

Hobbywing XeRun XR10 Pro G2 160A ESC - Orange - 30112607

(0)
€ 214,95

The XR10 Pro G2 ESC is designed for 1/10th and 1/12th RC car racing.

IT features a 32-bit microprocessor, built-in BEC with maximum current of 10A and voltage adjustable from 5 to 7.4v, battery-protection circuit, dual-switch control, adjustable maximum brake force (extended to 150%) and PWM & Brake frequencies and Turbo increase & decrease rates, and switchable motor direction (CCW/CW)


Upgraded M4 Microprocessor (32-bit) for
Professional Racing

High-performance 32-bit M4 microprocessor is implemented in the XR10PRO G2 for Super-fast and precise processing of complicated data operations, this allows the ESC to have a very rapid and precise response with extraordinary potential to optimize and extend its functions further. The XR10 PRO G2 is an exceptional piece of Hardware combined with accurate and powerful software makes this ESC into a “Precise weapon” for high end professional racing.

Internal Battery-Reverse Polarity Protection Circuit

With the Built-in Reverse Voltage Protection circuit, ESC's internal parts are all protected from Cross Connection of battery power.
(Note: the overall power system will be protected from damage when non-polarized filter capacitors are used; the standard electrolytic (external capacitors ) supplied for this ESC have no reverse polarity protection, so the capacitors (only) ,not the ESC will be damaged  when reverse polarity installation occurs.)

Innovative Dual-Switches / Removable External Switch

Internal electronic switch & external removable switch for easy and convenient  usage. The internal switch simplifies wiring while the external switch solves the issue “it’s hard to reach the built-in switch when the car body is mounted on or  inner chassis placement of ESC”. External switch is perfect for off-road applications. (Warning! This is Hobbywing’s registered patented)


Updated Drive, and Brake PWM Frequency


More available frequency values (include "Customized PWM Frequencies") for improved tuning options of the drive and brake feel.



Drive PWM:1-32KHz
Brake PWM:0.5-16KHz


Tunable Turbo Increase & Decrease Rates

More fine tunable values have been implemented for Turbo Increase & Decrease Rates which allows the end user to fine tune the turbo for optimal performance when racing at different size tracks .


Switchable Motor Direction

Switchable motor direction: CCW & CW for various chassis.


Super Internal BEC

Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step:0.1V) for usage with high voltage servos.


Softening Function (Hobbywing’s Patented Technology)

Softening function implemented in this ESC allows user to fine-tune the bottom end allowing for maximum controlled power of vehicles used in Modified class racing applications.


Programming/Upgrading/Data Reading Wirelessly

With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the Hobbywing WiFi Link App installed), users can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.


Data-logging Function

This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use. In the future, new (ESC) firmware will not only record the maximum temperatures, RPM and others but also provide complete operation (status) curve for users.


Hobbywing XERUN XR10 Pro Optional Black Top Case - 30850006

Schnellansicht

Bestellen

(0)
Auf Lager
Hobbywing XERUN XR10 Pro Optional Black Top Case - 30850006

Hobbywing XERUN XR10 Pro Optional Black Top Case - 30850006

(0)
€ 36,95

Hobbywing XERUN XR10 Pro Optional Black Top Case - 30850006

Hobbywing XeRun XR10 PRO-1S Heavy Duty - 30112609
