SkyRC T120 Pico AC LiPo 2-4s 6A 2x60W Charger
Product information "SkyRC T120 Pico AC LiPo 2-4s 6A 2x60W Charger"
The SkyRC T120 Pico is an AC charger with two fully independent charging circuits: two batteries of different chemistries can be charged at the same time, each with its own settings. Measuring 90 x 70 x 106 mm and weighing 355 g, it delivers 60 W per channel – 120 W of charging power in total – at up to 6 A charge current.

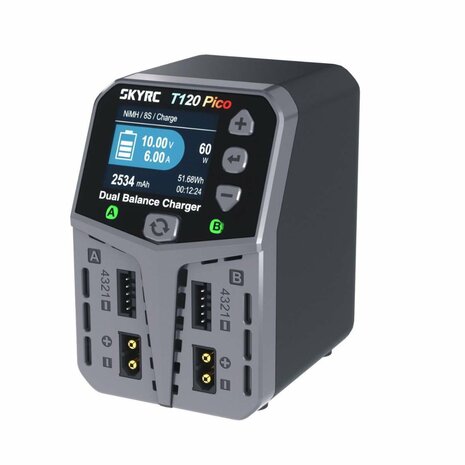

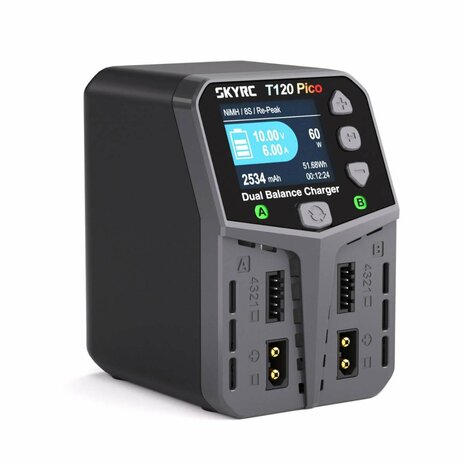

Both channels carry their XT60 output and balance socket on the front panel, so batteries are plugged in from the front. The charger handles LiPo, LiHV, Li-ion and LiFe with 2 to 4 cells, NiMH and NiCd with 6 to 8 cells and Pb batteries with 3 or 6 cells – the latter with an AGM mode and a cold charge mode for low temperatures alongside normal charging.
Precise control, down to every cell
Charging is governed by an Arm Cortex-M3 processor that keeps the selected values stable even under full load. Main output and balance port work together and monitor the voltage of every single cell throughout the charging process; balance current is 500 mA maximum.
Measure internal resistance on the charger
The Battery Meter function measures total pack voltage, individual cell voltages and internal resistance. During charging a press of the plus button is enough to scroll through the internal resistance of each cell – a quick way to judge the condition of a pack.
ColorX interface, six menu languages

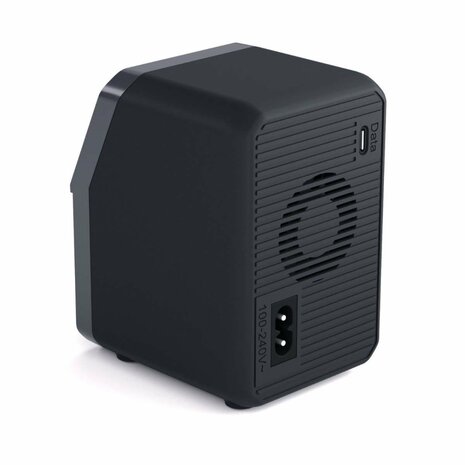

The T120 Pico is operated through the ColorX interface with its light cyan and green colour scheme and responsive Web2.0 menu: plus, enter and minus buttons plus a dedicated channel button to switch between A and B. The menu language can be set to English, German, French, Spanish, Chinese or Japanese, with English as the factory setting. A temperature sensor adjusts fan speed to load and temperature, keeping the charger quiet at low currents. Firmware updates run over the USB-C port using the SkyRC Charger Master PC software.
Power supply mode for RC accessories
Each port can output an adjustable DC voltage of 6 to 17 V at 0.5 to 6 A. SkyRC explicitly intends this as a supplementary output for RC accessories such as a pit light, tyre warmer or tyre sander: capacitive loads such as chargers or power supplies must not be connected, and batteries are not to be charged in DC mode.
Features
- Two independent charging circuits at 60 W each, 120 W in total
- Charge current up to 6 A, balance current up to 500 mA
- XT60 output and balance socket per channel, accessible from the front
- Working modes: Balance Charge, Charge and Storage (lithium), Charge and Re-Peak (NiMH/NiCd), Normal, AGM Charge and Cold Charge (Pb)
- Battery Meter for total voltage, individual cells and internal resistance
- Adjustable DC power supply, 6 to 17 V and 0.5 to 6 A per port
- ColorX colour interface with selectable menu language
- Temperature-controlled fan
- Adjustable safety cut-off by time and capacity, switchable trickle charge, float mode for Pb batteries
- Protections: short circuit, reverse polarity, over-voltage, overload, over-temperature, capacity and time limit, flame-retardant chassis
- Firmware updates over USB-C with SkyRC Charger Master
Technical Data
| Feature |
Value |
| Input voltage AC |
100 - 240 V (50/60 Hz) |
| Charge power |
60 W x 2 (±10%) |
| Charge current LiHV/LiPo/Li-ion/LiFe/NiMH/NiCd |
0.1 - 1 A (±0.15 A), 1.1 - 6 A (±10%) |
| Charge current Pb |
0.8 - 1 A (±0.15 A), 1.1 - 6 A (±10%) |
| Balance current |
max. 500 mA |
| Storage mode discharge |
max. 500 mA, via balance port only (up to 9 W) |
| Cell count LiHV/LiPo/Li-ion/LiFe |
2 - 4 cells |
| Cell count NiMH/NiCd |
6 - 8 cells |
| Cell count Pb |
3 or 6 cells |
| DC power supply output |
6 - 17 V (±0.2 V), 0.5 - 6 A |
| Connectors |
2x XT60, 2x balance, USB-C (firmware) |
| Menu languages |
English, German, French, Spanish, Chinese, Japanese |
| Operating temperature |
0 °C to 40 °C |
| Dimensions |
90 x 70 x 106 mm |
| Weight |
355 g |
Scope of Delivery
- 1x SkyRC T120 Pico charger
- 1x power cord
- 1x instruction manual
