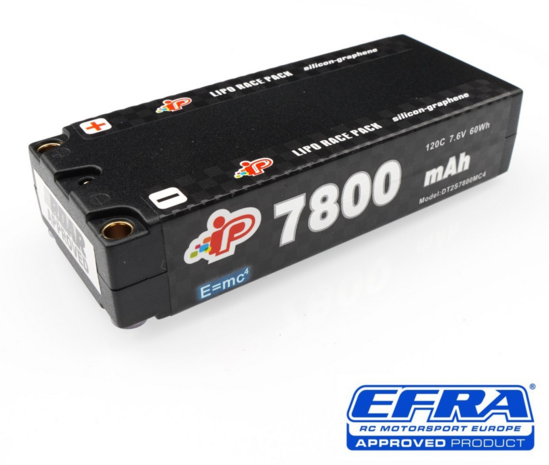

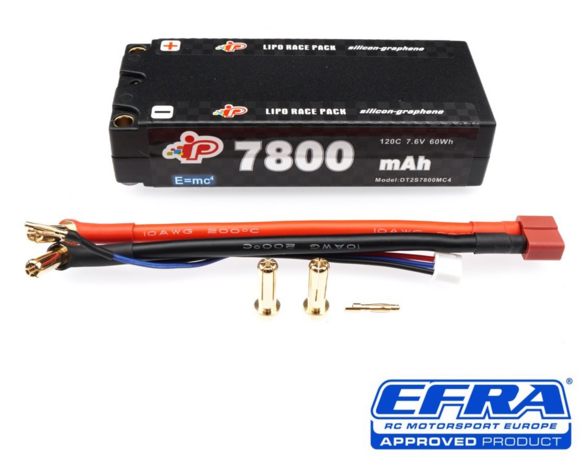

Intellect MC4 7800mAh 120C 7.6V Graphene 113mm Long Runtime Mid-Shorty Pack LiHV
This MC4 stick Akku pack in the 2026 LiHV specification is aimed at drivers who want long runtime and a clean, stable voltage feel under load. With 7800mAh capacity and 120C, it delivers noticeable punch on acceleration and consistently driveable power output throughout the entire run.
The 113mm stick format is ideal when a compact, competition ready form factor is required. The 5mm tubes provide a durable high current connection with reduced power loss.
This pack is intended for competition use and is marked for common regulations such as EFRA, BRCA, ROAR and IFMAR. LiHV means charging up to 4.35V per cell with a compatible LiHV charger.
Key Features
- 7800mAh for strong runtime and consistent power delivery
- LiHV technology with a nominal voltage of 7.6V and a charge cut off voltage up to 4.35V per cell.
- 120C discharge rate for powerful acceleration and a stable voltage curve.
- 5mm gold contact sockets for robust, high current capable connections and low loss power transfer.
- 2026 silicon graphene cell chemistry with very low internal resistance and reduced heat generation.
- Approved for EFRA, BRCA, ROAR and IFMAR.
Technical Data
| Manufacturer / Model |
Intellect MC4 LiHV 2026 Spec DT2S7800MC4 |
| Type |
LiPo / LiHV (High Voltage) |
| Configuration |
2S1P (2 cells) |
| Capacity |
7800 mAh |
| Nominal voltage |
7.6 V |
| C-Rate (discharge) |
120C |
| Dimensions (L x W x H) |
113 x 47 x 25.1 mm |
| Connector |
5 mm tubes |
| Weight |
260 g |
| Cell technology |
Silicon Graphene LiHV (2026 Spec) |
| Format |
113mm stick |
| Approvals |
EFRA, BRCA, ROAR, IFMAR |
Charging and Storage Information
Never store the Akku fully charged or completely discharged. For optimum service life, we recommend a storage voltage of about 3.80V to 3.85V per cell. Avoid heat and direct sunlight during storage. A cool, dry place is ideal. A hot car trunk is not a suitable storage location for LiHV Akkus.
For maximum service life, we recommend charging at 1C. Higher charge currents can significantly reduce cell lifespan and performance and can negatively affect cell balance over time.
Safety notice: Always use a suitable LiPo safety bag when charging, for example the RUDDOG HD LiPo charging bag (180x80x80mm).
Installation Recommendations
Make sure the Akku is not in direct contact with hot components such as the motor to avoid unnecessary heat exposure. To further cool the motor and Akku, we recommend using a fan, for example:
If the contacts are heavily worn, we recommend replacing the plugs on the speed controller in good time to minimize contact resistance. Suitable replacement plugs are available from the RUDDOG Distribution range.
Warranty
All Akkus are covered by the legally required warranty period. Please note that improper use, incorrect storage or mechanical damage may lead to loss of warranty claims.
